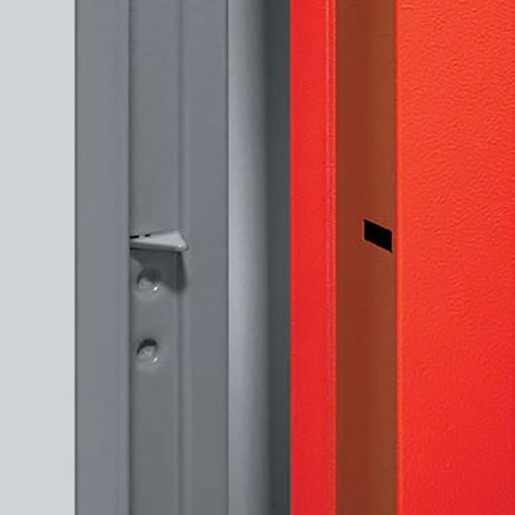

Security points detail on the insulated multipurpose door
Seals détail on the insulated multipurpose door

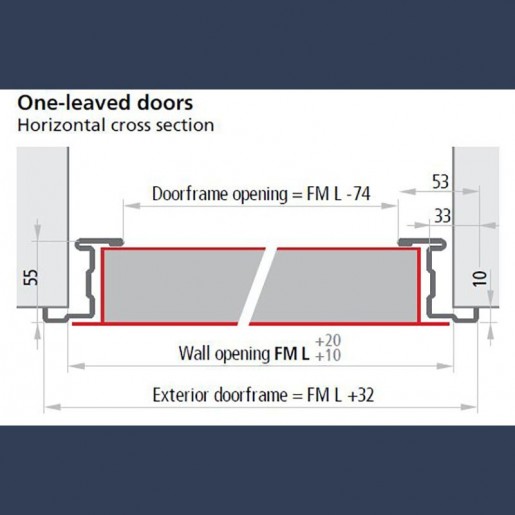

Standard frame on single insulated multipurpose door - dimensions sketch
Insulated multipurpose door (double door variant has reversible leaves)
Hinge détail on the insulated multipurpose door
Security points detail on the insulated multipurpose door
Seals détail on the insulated multipurpose door
Standard frame on single insulated multipurpose door - dimensions sketch

Insulated steel door

Insulated steel door for external use

Certificated CE 0425-CPR-002237 EN14351

€1,157.97  / unit.
Manufacturing within 2 weeks
Leaf
Wall opening
Frame
Quantity

Description

Insulated multipurpose steel door

Industrial and building outdoor applications



Fabrication

- Solid design and manufacture

- Fully galvanized door, including the “hidden” parts

- Made of “Sendzimir” process hot-galvanized sheet metal

- Corrosion protection also provided along cut edges of the metal sheets

- Painted with epoxy-polyester thermoset powders in a 180°C oven

- Substantial paint layer (70 microns plus)

- Optimal corrosion resistance demonstrated by 500 hour salt-fog test

- Unaffected by severe climate changes, demonstrated by 2000 hours with +60° to -10° cycles at 75% humidity

- Finishing with high-quality aesthetics

- Orange skin anti-scratch structured paint

- Customizable with wide selection of RAL colors



Standard Elements

- Door leaf

   -- Made of “Sendzimir” processed hot-galvanized sheet metal, press folded and electro welded
   -- Perimetral rebate on 4 sides
   -- Heat-insulated with mineral wool
   -- Internal stiffeners for overhead door closer and panic bar
   -- Thickness of 50 mm

- Door frame

   -- Made of “Sendzimir” processed hot-galvanized sheet metal
   -- Grooves for rebate sealing
   -- Suitable for anchors for mortar fixing or expansion screws
   -- Detachable rebate for application on finished flooring
   -- Removable threshold for threshold-less installation (except for external doors CE marked)
   -- Strike plates in black plastic for lock bolt
   -- Assembled door frames for one-leaved doors
   -- Assembly required for two-leaved door frames

- Hinges

   -- Nr. 2 three-wing hinges for each leaf
   -- of which one 1 ball-bearing hinge with screws for vertical adjustment of the leaf, marked as per EN 1935, classified for up to 160 kg load, 200.000 cycles durability, suitable for fire door use
   -- and one hinge with self-closing spring
   -- Nr. 3 safety bolts applied on hinge side door frame edge

- Locking mechanism and Handle

   -- Reversible locking mechanism with bolt and central latch
   -- Insert with patent key, Euro profile cylinder ready
   -- Black plastic handle
   -- Fastener screws to pass
   -- Insert for patent-type key
   -- Safety lock with central latch for blocking and unblocking the inactive leaf

- Upper coupling system for the inactive leaf

   -- Vertical rod with steel point which inserts into the upper strike box
   -- Upper strike box in black plastic with steel roller

- Lower coupling system for the inactive leaf

   -- Vertical rod with steel point which inserts into lower strike box
   -- Floor catch (floor-mounted bushing) in black plastic, for doors without threshold
   -- Floor catch in black plastic with steel roller, for doors with threshold



Conditions

-Wind resistance and water tightness

- Thermal isolation

- Air permeability

- Suitable for use with panic bar

- Ambient temperature between -10°C to +60°C

- indoor & outdoor installation



Options

- Suitable for multiple uses because of its sturdiness

- Vast assortment of accessories

- Customized measurements also available

- Very wide field of application

Product Details

NINZ
350002001

Data sheet

Material
galvanized carbon steel
Painting
powder coating
