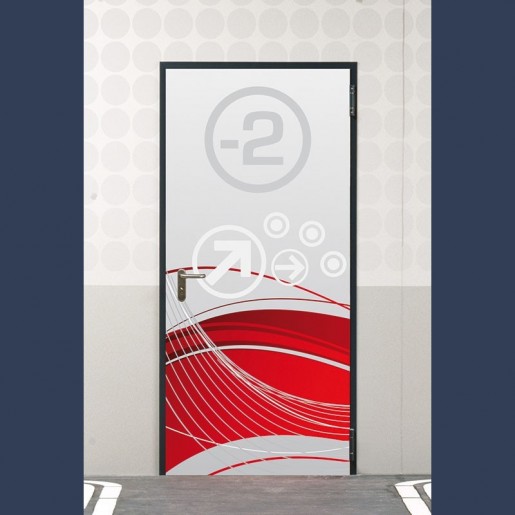

Metal fire door EI2 60 (fire rating 1 hour)
Standard frame détail on the metal fire door EI2 60
Security points detail on the metal fire door EI2 60

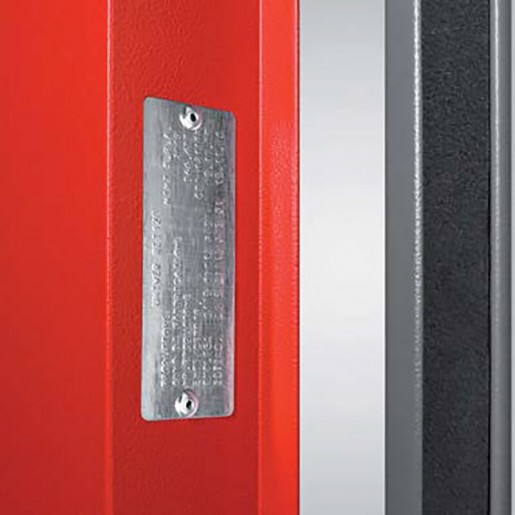

Fire class certification marking on the metal fire door EI2 60
Metal fire door EI2 60 (fire rating 1 hour)
Standard frame détail on the metal fire door EI2 60
Security points detail on the metal fire door EI2 60
Fire class certification marking on the metal fire door EI2 60

Fire door EI2 60

Fire steel door for external & internal use

€393.00
Manufacturing within 2 weeks
Leaf
Wall opening
Frame
Quantity

  • With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online. With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online.
  • Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible. Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible.
  • The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim. The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim.

Description

Fire steel door EI2 60 EN 1634-1

Industrial and building internal & external applications



Fabrication

- Solid design and manufacture

- Fully galvanized door, including the “hidden” parts

- Made of “Sendzimir” process hot-galvanized sheet metal

- Corrosion protection also provided along cut edges of the metal sheets

- Painted with epoxy-polyester thermoset powders in a 180 degrees (Celsius) oven

- Substantial paint layer (70 microns plus)

- Optimal corrosion resistance demonstrated by 500 hour salt-fog test

- Unaffected by severe climate changes, demonstrated by 2000 hours with +60° to -10° cycles at 75% humidity

- Finishing with high-quality aesthetics

- Orange skin anti-scratch structured paint

- Customizable with wide selection of RAL colors



Certifications

- Fire rating 60' (One hour) EI2 60

- In-house Ninz R&D with specialized testing equipment

- Fire testing in accordance with UNI 9723 and EN 1634-1

- Mechanical testing for the CE marking of accessories

- CE marked door accessories studied and sized to meet standard European requirements

- Metal tag with door identification data, in accordance with current regulations

- Careful selection of materials and manufacturing methods

- Strict product testing for conformity to declared technical standards

- Absolute functional certainty over time

- Doors “type approved” in compliance with M.D. 21 June 2004

- Products delivered with the documentation required by current regulations



Standard Elements

- Door leaf

   -- Made of “Sendzimir” processed hot-galvanized sheet metal, press folded and electro welded
   -- Perimetral rebate on 4 sides
   -- Internally reinforced with hot-galvanized steel profiles
   -- Heat-insulated with treated mineral wool
   -- Internal stiffeners for overhead door closer and panic bar
   -- Thickness of 60 mm

- Door frame

   -- Made of “Sendzimir” processed hot-galvanized sheet metal
   -- Grooves for for thermo expansive sealing and rebate sealing
   -- Suitable for anchors for mortar fixing or expansion screws
   -- Detachable rebate for application on finished flooring
   -- Removable threshold for threshold-less installation (except for external doors CE marked)
   -- Strike plates in black plastic for lock bolt
   -- Assembled doorframes for one-leaved doors
   -- Assembly required for two-leaved doorframes Thermo expansive sealing
   -- Mounted on vertical doorframe profiles and central vertical profiles on two-leaved doors
   -- For on-site mounting on the doorframe’s upper cross-beam

- Hinges

   -- Nr. 2 three-wing hinges for each leaf
   -- of which one 1 ball-bearing hinge with screws for vertical adjustment of the leaf, marked as per EN 1935, classified for up to 160 kg load, 200.000 cycles durability, suitable for fire door use
   -- and one hinge with self-closing spring
   -- Nr. 2 safety bolts applied on hinge side leaf edge

- Locking mechanism and Handle

   -- Reversible locking mechanism with bolt and central lock
   -- CE marked in conformity with EN 12209 standard
   -- Insert with patent key, Euro profile cylinder ready
   -- Fire rated handle in black plastic with steel core
   -- Steel installation plate with cylinder hole
   -- Cover plate in black plastic
   -- Fastener screws and patent key insert
   -- Two-leaved doors include an RC/STD closing regulator to ensure the correct closing sequence of the leaves
   -- CE marking in conformity with EN 1158 standard
   -- “Flush-bolt” automatic locking of the inactive leaf
   -- Lever control for unlocking

- Upper coupling system for the inactive leaf

   -- Inactive leaf lock activated device which inserts rod into the upper strike box
   -- Upper strike box in black plastic with steel roller

- Lower coupling system for the inactive leaf

   -- Vertical rod with steel point which inserts into lower strike box
   -- Floor catch (floor-mounted bushing) in black plastic, for doors without threshold
   -- Floor catch in black plastic with a steel roller, for doors with threshold



Conditions

We invite you to contact our technical support to validate your choice

- indoor & outdoor installation (with roofing rain protection)



Options

- Suitable for multiple uses because of its sturdiness

- Vast assortment of accessories

- Customized measurements also available

- Very wide field of application

Product Details

NINZ
350003001

Data sheet

Material
galvanized carbon steel
Painting
powder coating
fire class
EI 60
