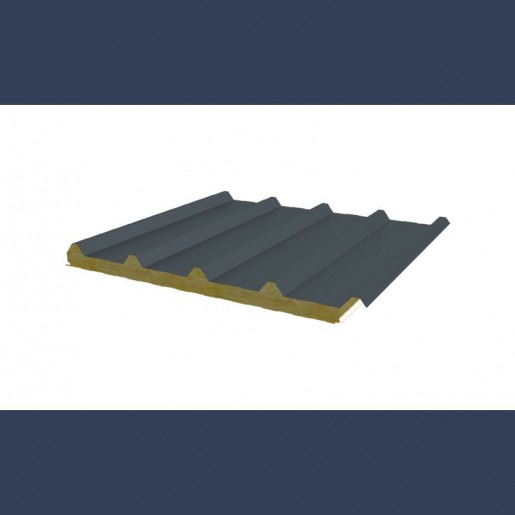

Acoustic roof panel

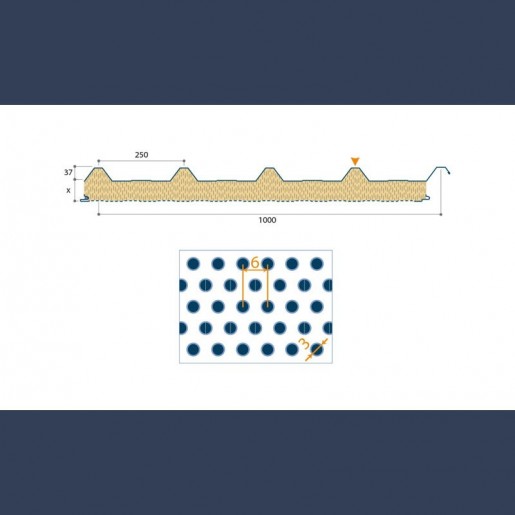

acoustic roof panel sketch

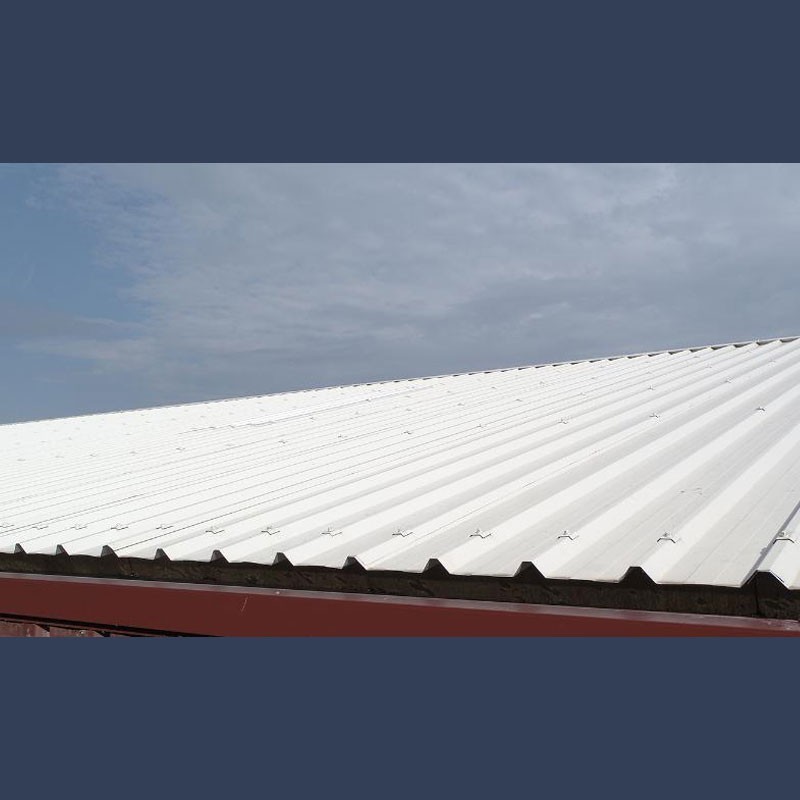

acoustic roof panel in situ
Acoustic roof panel

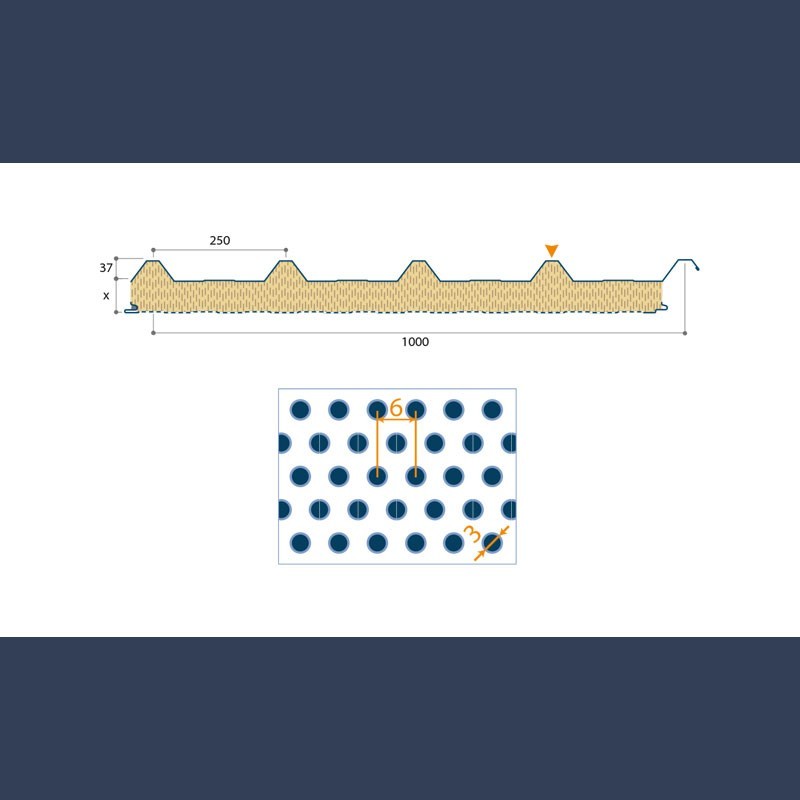

acoustic roof panel sketch
acoustic roof panel in situ

Acoustic roof panel

Acoustic roof panel with absorbent inner face allowing good internal acoustic correction and good insulation of noise towards the exterior

Acoustic cladding panels for outdoor roof cover Ornitolink series 340006000

- Acoustic panel made with an external trapezoidal full steel sheet, filled with high density rock wool and covered with a perforated steel sheet for noise absorption

- Roofing sandwich panels specifically profiled for the construction of sloping roofs (5% min)

- Noise reduction index Rw 26 decibel to 31 decibel

- Sound absorption coefficient αw 0,75 to 0,9

- Width 1000 mm

- Standard length from 2,50 m to 10 m

€226.52  / unit.
VAT excluded Delivered within 2 to 6 weeks
Thickness - Rw
Length
Quantity

The minimum purchase order quantity for the product is 20.

Description

Acoustic steel panel with external full sheet and internal perforated sheet for roofing applications



Fabrication

- Metal sheet steel S 280 GD. Outside: 0.60 mm (option: 0.75 mm) full sheet, Inside: 0.50 mm (option: 0.63 - 0.75 mm) perforated sheet R3T6 (23%)

- Insulation high density rock wool, 100 kg/m3, λ 0,044 W/m.K

- Standard finishing paint : inner face 15µ RAL 9002, external face 25µ RAL to choose between 40 colors



Dimensions

- Width 1 000 mm

- Standard length from 2 500 mm to 10 000 mm



Options

- adjusted length

Product Details

Ornitolink
340006001

Data sheet

Material
galvanized steel
