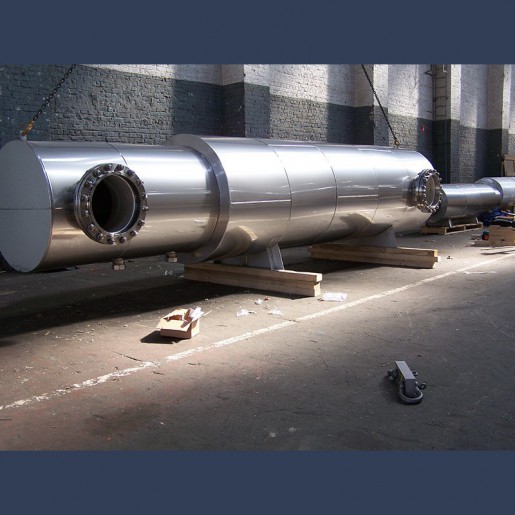

Engine exhaust silencer 50dBA - manufacturing
Engine exhaust silencer 50dBA - in situ
Engine exhaust silencer 50dBA - in situ
Engine exhaust silencer 50dBA - in situ
Engine exhaust silencer 50dBA - manufacturing
Engine exhaust silencer 50dBA - in situ
Engine exhaust silencer 50dBA - in situ
Engine exhaust silencer 50dBA - in situ

Engine exhaust silencer 50 dB(A)

High efficiency genset exhaust gas silencer designed to reduce the noise of internal combustion for all type of engine, petrol, diesel & gas

- Silencer noise reduction 50 dB(A)

- Gas flow from 1 500 m3/h to 35 000 m3/h

- Engine power from 110 kW to 2 500 kW

Power & flow given at 450°C with 1 000 Pa Pressure drop

€2,715.04  / unit.
Delivered within 1 to 4 weeks
Diameter - Engine power - Flow
Flanges & counter flanges with bolts
Quantity

Description

Exhaust silencer for engine exhaust noise reduction

Gas engine silencer to reduce the noise of internal combustion for all type: petrol, diesel & gas

High efficiency exhaust silencer combining reactive & absorptive effect with low pressure drop, NR 50 dB(A)



Fabrication

- Silencer made of carbon steel S235 JR

- Protection paint treatment by high temperature black prime paint.

- Internal thermal insulation to reduce heat emission

- Rock wool protected with perforated steel sheet and glass cloth

- Assembly on site by welding, flanges and counter flanges with bolts available



Conditions

- Exhaust gas temperature 450°C

- Recommended installation with expansion device to ensure that no vibration or mechanical stress will be applied to the silencer



Standards

- Dimensional tolerances ISO 13920 class B

- Global attenuation 50 dB(A) based on a noise spectrum with a dominant frequency of 125 Hz

- Other material stainless steel, corten, ... available on request.

Product Details

110005001

Data sheet

Material
Acier carbone S235 JR
Paint
High temperature black primary coat internal and external
Type
Absorptive & reactive

Attachments

Download

Exhaust silencer 50dB(A) pdf

Performances and dimensions

Download (256.5k)
