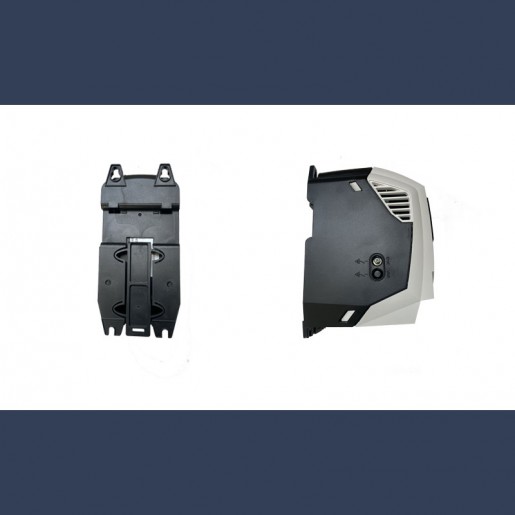

frequency converter DIN rail fixing detail
Frequency converter Eco IP20
Frequency converter IP20 electric control sketch
Frequency converter electrical connection terminal block on the front
frequency converter DIN rail fixing detail

Frequency converter Eco IP20

Variable speed drive for installation in electrical cabinet, frequency converter Ornitolink series 760001000

Variable frequency drive for AC motors to regulate motor rotation speed, recommended for adjusting fan operation.

- Power from 0,75 kW to 22 kw

- Simple and economical model for 3 phased motors

- Electrical protection IP20

- RJ45 and RS485 Modbus connections

€376.00  / unit.
VAT excluded Delivered within 1 week
Power-Voltage
Quantity

Description

Frequency variator for motor speed adjustment

The converter regulates the motor's operating speed, allowing the fan to be adjusted to meet requirements without over-stressing. This limits mechanical and thermal stress. It also protects the electrical device from network voltage variations.



Technical data

- Power from 0,75 to 22kW in three-phases TRI 400V

Select a power higher or equal of the motor

- Max. frequency 500 Hz

- Integrated EMC filter compliant with IEC/EN 61800-3 : 2004 - catégorie C1 (1m)

- Ambiant temperature : -10°C / +50°C

- Protection rating : IP20

- RJ45 & RS485 Modbus communication



Installation

- DIN rail back fixation

- indoor in a protected electrical cabinet



Optional accessories on demand

- Copy key & PC tool connection via Bluetooth

- Optional card for adding a second relay output

Product Details

Ornitolink
760001001

Data sheet

Protection
IP20
