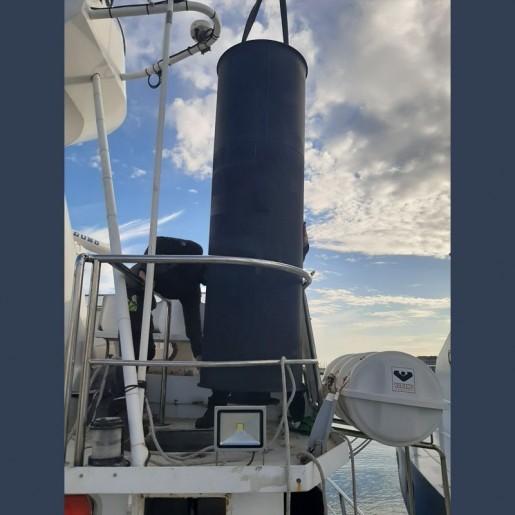

ship engine silencer 30dBA on board
ship engine silencer 30dBA
30dB ship silencer attenuation curve
ship engine silencer 30dBA installation
axial silencer without flange
ship engine silencer 30dBA on board
ship engine silencer 30dBA
30dB ship silencer attenuation curve

Ship engine exhaust silencer 30 dB(A)

Exhaust gas silencer for the noise reduction of ship engine with axial inlet and outlet pipes
Compact design with low diameter, low pressure drop and reduced mass

Fully welded carbon steel S235 JR with rock wool acoustic insulation and internal perforated steel sheet

- Silencer noise reduction 30 dB(A)

- Diameter from 80 mm to 350 mm Engine power and flow are calculated at 450°C with 500 Pa back pressure

Other dimensions available on request

€394.30  / unit.
Delivered within 2 to 6 weeks
Diameter - Engine power - Flow
Flanges & counter flanges with bolts
Quantity

Description

Silencer for ship engine exhaust noise reduction with axial inlet and outlet pipes

High efficiency exhaust silencer combining reactive and absorptive effect with low pressure drop, NR 30 dB(A)

Gas engine silencer to reduce the noise of internal combustion for all type: petrol, diesel & gas.



Fabrication

- Silencer made of carbon steel S235 JR

- Protection paint treatment by high temperature prime paint

- Heat emission is reduce by internal insulation.

- Rock wool protected with perforated steel sheet and glass cloth

- Assembly on site by welding

- flanges and counter flanges with bolts are available in the selection

- Other material stainless steel, corten, ... available on request



Conditions

- Exhaust gas temperature 450°C

- Recommended installation with expansion device to ensure that no vibration or mechanical stress will be applied to the silencer



Standards

- Dimensional tolerances ISO 13920 class B

- Global attenuation 30 dB(A) based on a noise spectrum with a dominant frequency of 125 Hz

Product Details

Ornitolink
110011001

Data sheet

Material
Carbon steel S235 JR
Paint
High temperature black primary coat internal and external
Acoustic
Rock wool

Attachments

Download

Ship exhaust silencer 30dB(A) pdf

Performances and dimensions

Download (259.56k)
