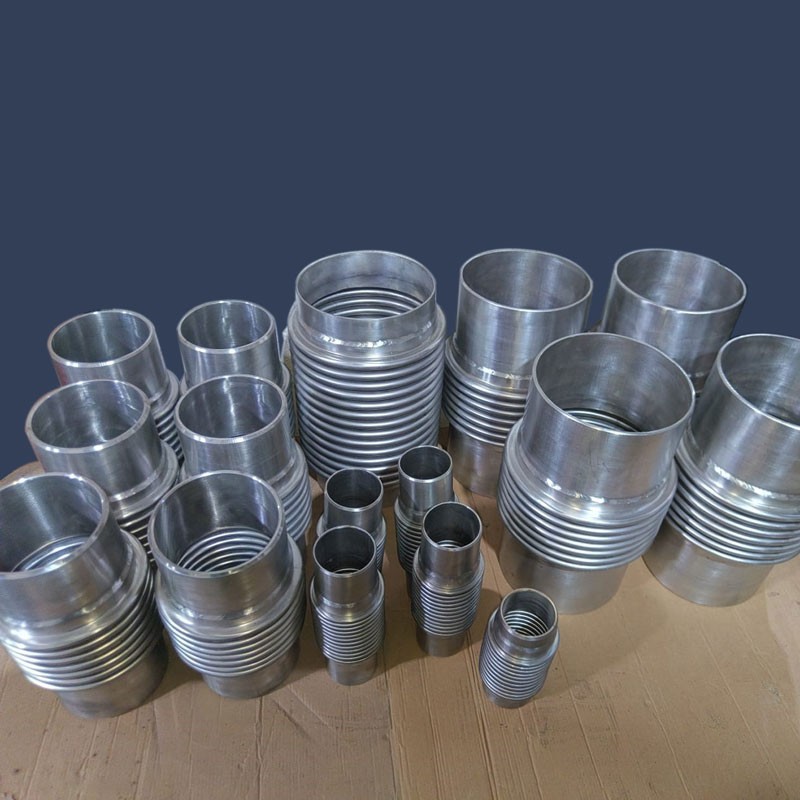

Metal expansion joint weld ends

Metallic expansion joint to compensate thermal expansion, pipeline movements and vibrations

Metal compensator in stainless steel 304 to be welded in piping systems

- Design pressure 16 bar

- Design temperature 400°C

- Diameter from 50mm (2") to 500 mm (20")

€263.12  / unit.
VAT excluded
Diameter
Length - Movement (mm)
Quantity

Description

Stainless steel expansion joint dedicated to be welded in pipe network



Fabrication

- bellows in stainless steel 304

- multi ply bellows

- Convolutions by mechanical or hydroforming process

- welded end in carbon steel



Conditions

- Design temperature 400°C

- Design pressure 16 bar



Standards

- CE certificate

Product Details

Ornitolink
430003001

Data sheet

Material
stainless steel

Attachments

Download

Product data sheet pdf

Dimensions - movements

Download (185.78k)
