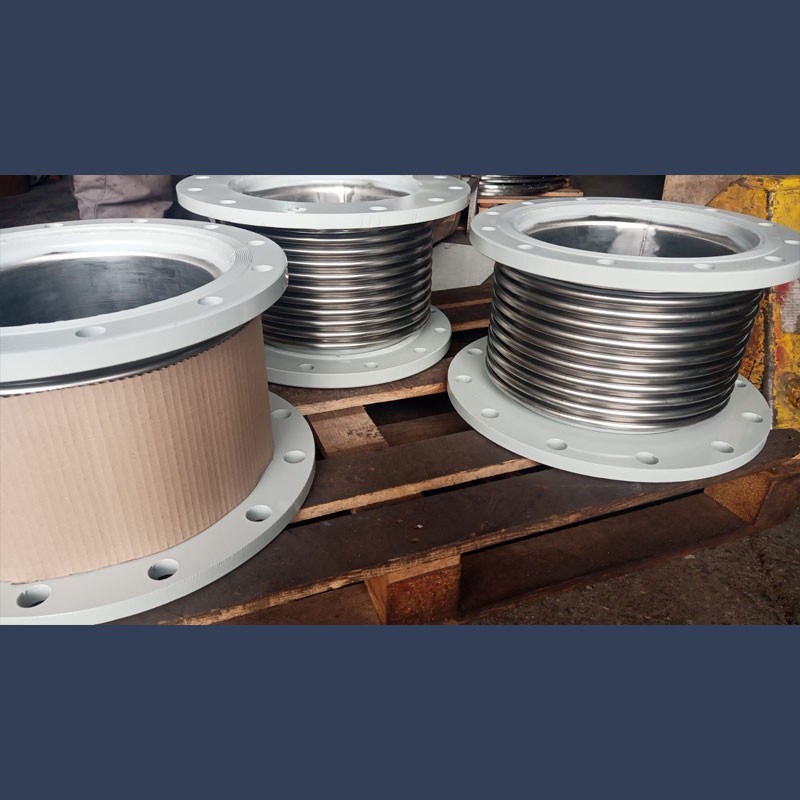

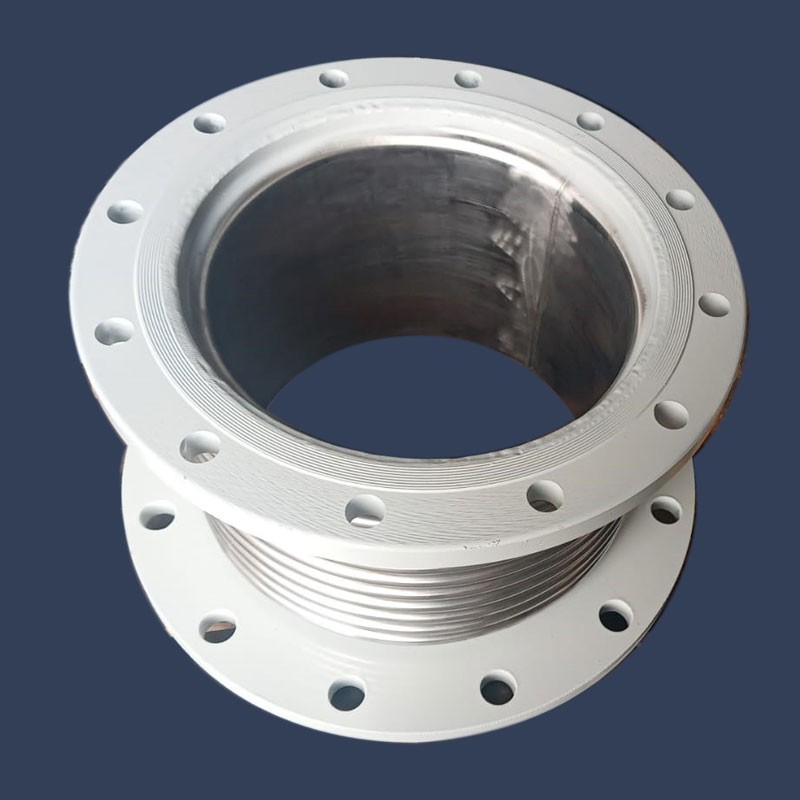

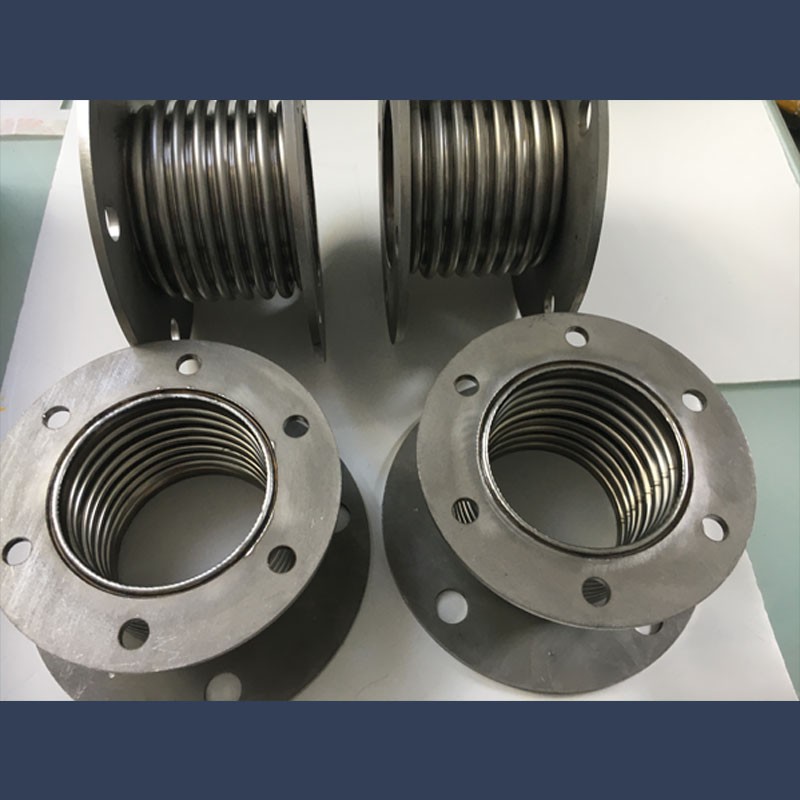

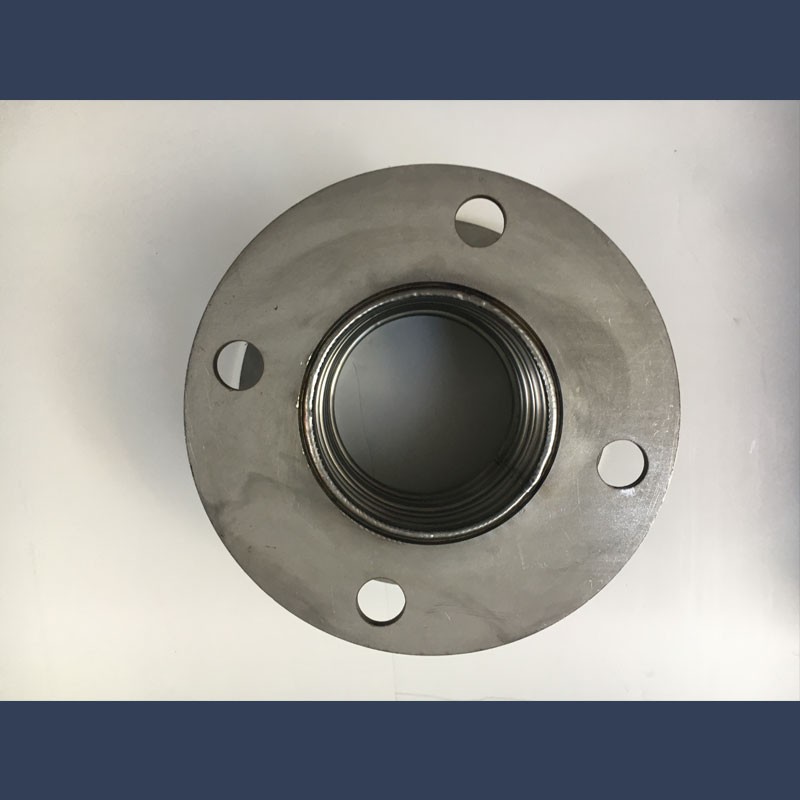

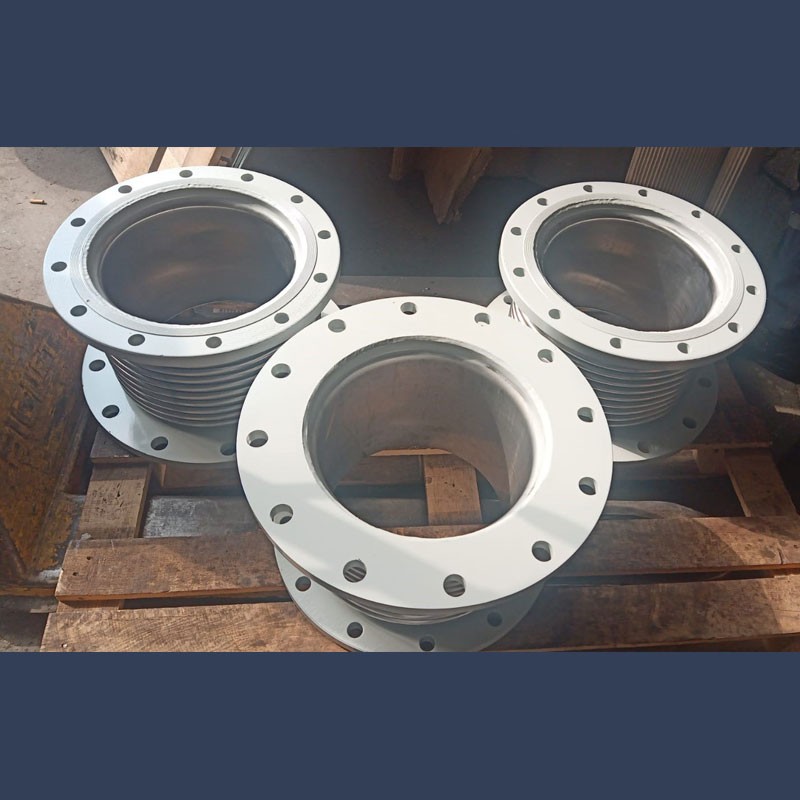

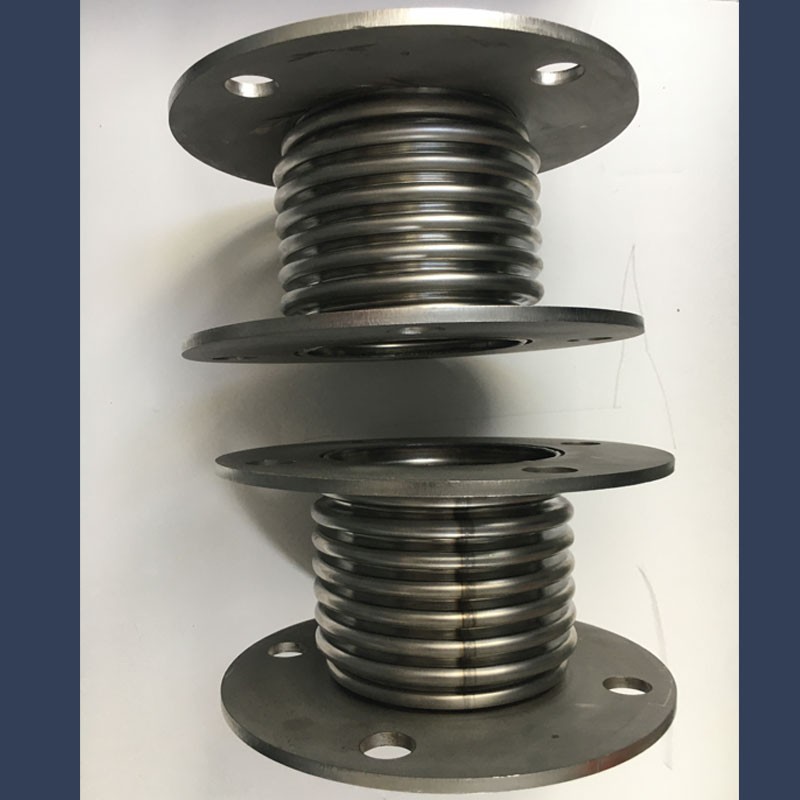

Metal expansion joint fixed flanges

Metallic expansion joint to compensate thermal expansion, pipeline movements and vibrations

Metal compensator in stainless steel 304 to be bolted with flanges in piping systems

- Design pressure 16 bar

- Design temperature 400°C

- Diameter from 50mm (2") to 500 mm (20")

- Flanges PN16

€73.85
Diameter
Length - Movement (mm)
Quantity

  • With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online. With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online.
  • Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible. Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible.
  • The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim. The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim.

Description

Stainless steel expansion joint dedicated to be bolted with flanges in pipe network



Fabrication

- bellows in stainless steel 304

- multi ply bellows

- Convolutions by mechanical or hydroforming process

- Flanges in carbon steel



Conditions

- Design temperature 400°C

- Design pressure 16 bar



Standards

- CE certificate

- Flanges PN16

Product Details

Ornitolink
430004001

Data sheet

Material
stainless steel

Attachments

Download

Product data sheet pdf

Dimensions - movements

Download (185.56k)
