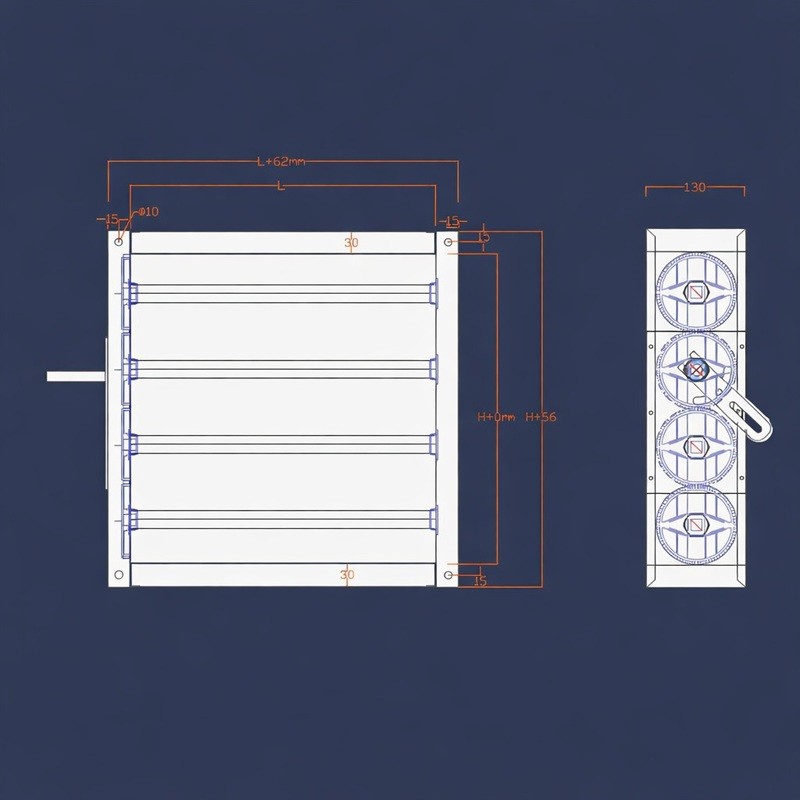

Damper sketch
Damper pressure drop and air speed
Damper for air flow regulation
Galvanized steel damper
Damper for air flow regulation industrial application
Damper sketch
Damper pressure drop and air speed

Damper for air flow regulation

Air damper in galvanized steel Ornitolink 620001000 series

Air ventilation control and balancing galvanized steel damper dedicated to air ventilation network

- Allowable pressure 1 800 Pa

- Air speed up to 15 m/s

- Height / Width from 100 mm to 1 000 mm

- Shaft square 14 mm

- Dimension between flanges 120 mm

Shutter damper for HVAC and air conditioning systems in industry and tertiary applications

€75.08  / unit.
Delivered within 5 weeks
Width
Height
Quantity

  • With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online. With the 3D Secure system, Banque Populaire offers enhanced authentication to better protect you, secure your purchases online.
  • Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible. Thanks to the quality of the service of our partners, we will always strive to ship your order as soon as possible.
  • The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim. The conformity of the products is checked before shipping. Any damage must be notified on the delivery bond. Our customer service is at your disposal in case of claim.

Description

Galvanized steel damper for air networks and air handling units

Designed to ensure adjustment, rebalancing, mixing & dosing



Fabrication

- Galvanized steel blades at 100 mm spacing

- Galvanized steel frame Z275, th. 15/10 mm, dimension between flanges 120 mm

- Aircraft wings profile for low pressure drop

- Corrosion resistance

- Drilling of the frame at each angle for bolt connection

- Bearing and gearwheel in glass fiber reinforced polypropylene, 100 mm diameter, Inner wheel in the air flow

- 14 mm square shaft for motor or handle connection



Dimensions :

-Any dimensions ≤ 1000 X 1000 mm



Options :

- Non-standard dimensions

- Connection ferrule

- stainless steel 304L / 316L frame

- EPDM seal

- grids/filter/damper combination

- horizontal or vertical coupling

- handle with locking system for manual control

- servomotor



Conditions

- temperature -10°C to 75°C

- max. air speed : 15 m/s

- allowable pressure : 1800 Pa for 1 m length

Product Details

Ornitolink
620001001

Data sheet

Material
Carbon galvanized steel
