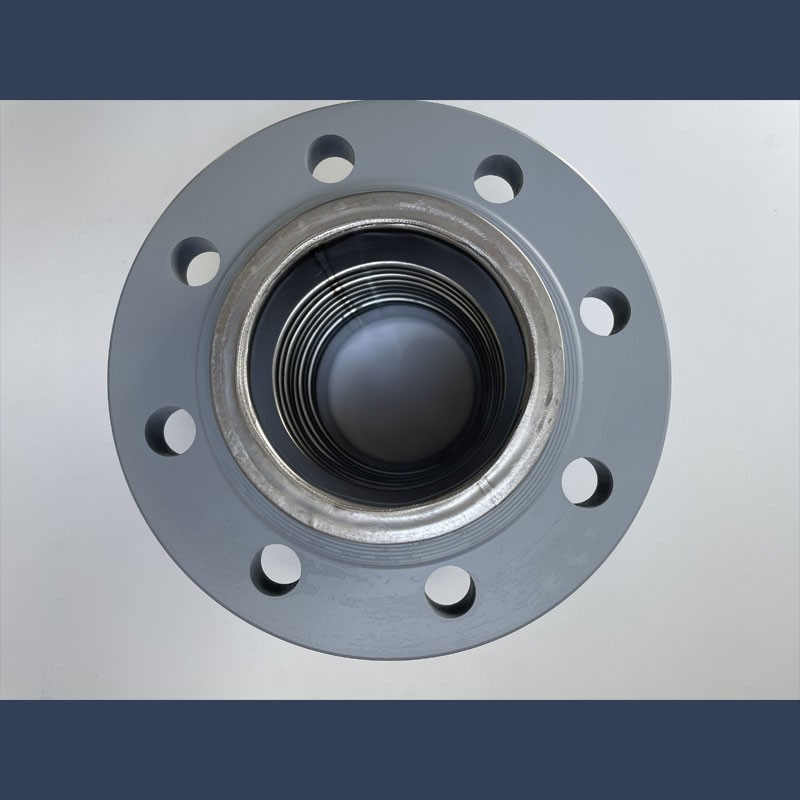

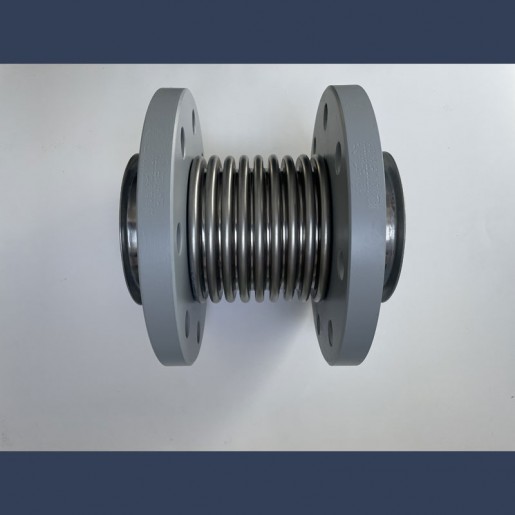

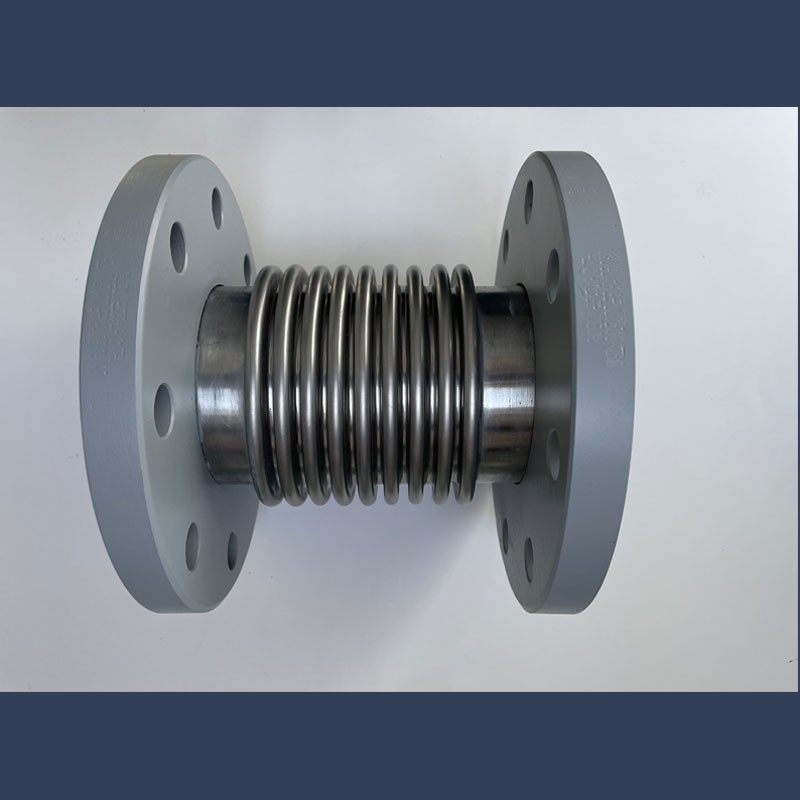

Metal expansion joint floating flanges

Metallic expansion joint to compensate thermal expansion, pipeline movements and vibrations

Metal compensator in stainless steel 304 to be bolted with flanges in piping systems

- Design pressure 16 bar

- Design temperature 400°C

- Diameter from 50mm (2") to 500 mm (20")

- Flanges PN16

€290.42  / unit.
Diameter
Length - Movement (mm)
Quantity

Description

Stainless steel expansion joint dedicated to be bolted with floating flanges in pipe network

Flanges are rotating to allow position adjustment



Fabrication

- bellows in stainless steel 304

- multi ply bellows

- Convolutions by mechanical or hydroforming process

- Flanges in carbon steel



Conditions

- Design temperature 400°C

- Design pressure 16 bar



Standards

- CE certificate

- Flanges PN16

Product Details

Ornitolink
430005001

Data sheet

Material
stainless steel

Attachments

Download

Product data sheet pdf

Dimensions - movements

Download (187.27k)
